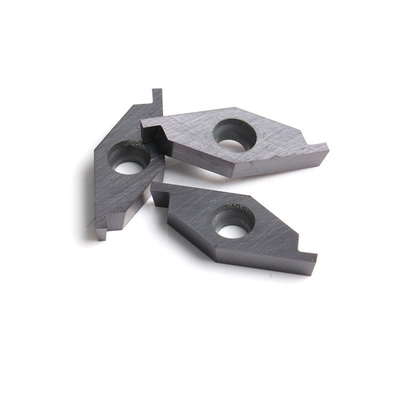

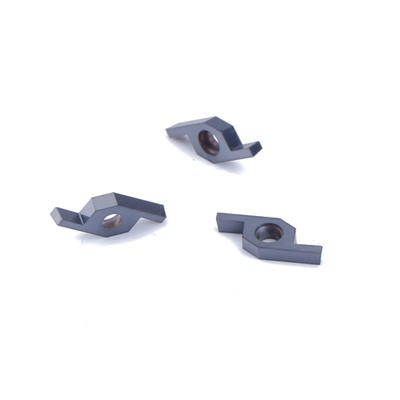

CSVC CNC Carbide Cutting Off Inserts With Nose Radius And Entering Angle For Good Chip Control And Machining Performance
CSVC Application Field
The CSVC is a widely recognized type of CNC carbide insert designed for external grooving and parting-off operations. It is primarily employed for grooving and cutting on lathes and CNC machines, available in various shapes and cutting angles.
When selecting a cut-off insert, several parameters must be considered, including insert geometry, grade, shape (nose angle), size, nose radius, and entering (lead) angle. Careful selection of these factors is essential for optimal chip control and machining performance.
Production Standard
This series of inserts primarily aligns with the standards set by NTK’s CSVC series. Size specifications can be customized to meet individual client needs.
The CSVC series is a sub-series of the well-known CSV line of carbide grooving inserts from NTK. Our Drow standard production sizes and stock specifications are based on this esteemed series.
For specific details, please refer to the section below.
Product Details: CSVC
-
Material Quality: Made from 100% original carbide powder, ensuring excellent wear resistance and toughness.
-
Dimensions:
- Width (W): 3.0–5.0 mm
- Maximum Cutting Diameter: 0.6–1.5 mm
- Nose Radius (rε): 0.0 mm
-
Coating Technology: Advanced coatings are tailored to your specific application, providing superior corrosion and wear resistance.
-
Fine Grinding Process: The insert surface is finely ground for high smoothness and excellent cutting edge quality, effectively reducing friction and loss.
-
Perfect Fit: Designed with accurate and smooth edge strips, minimizing the likelihood of micro-vibration during machining.
-
Applicable Materials:
- Uncoated Inserts: Suitable for aluminum, non-ferrous metals, and non-metallic materials.
- Coated Inserts: Ideal for carbon steel, alloy steel, mold steel, hardened steel, and ductile iron.
-
Customization: If our standard stock does not meet your specific requirements, please attach CAD or 3D drawings for inquiries.
-
Production Quality: All inserts are manufactured using high-end EU processing equipment. For further information, please refer to the “Entire Production Quick View” section.
Product Features:
1.Chamfering and tip-arc processing of the insert cutting edge, which can well protect the insert edge from fracture and lead to smooth workpiece surface.
2.Switzerland 5 axis machine processing R Angle, and passivation treatment, high precision without burr
3. High performance composite coating support which can offer you super hard and smooth surface.
4. Professional and efficiency chip-breaker design, provides perfect cutting performance.
5. Precise dimension, high accuracy. Perfectly fit to tool holders so that not easy to produce micro-vibration during processing.
6.The base material imported from Europe has better oxidation resistance and wear resistance.
7. Customized insert design.Different dimensions,coating, chip-breaker, and material grade are available.
Carbide inserts produced by We Drow realize efficiency machining and long tool life, which are popular and well-feedback all over the world.
Product Specification:
| Part Number |
W1 |
S |
D1 |
| CSV_ |
3 |
8.7 |
5 |
| Part Number |
Dimensions(mm) |
| Chipbreaker |
W |
Maximum Cutting DiameterφD |
rε |
| CSVC_ |
11FR/L V06 |
N |
3.0 |
0.6 |
0.0 |
| 11FR/L V07 |
4.0 |
0.7 |
0.0 |
| 11FR/L V08 |
4.0 |
0.8 |
0.0 |
| 11FR/L V09 |
4.0 |
0.9 |
0.0 |
| 11FR/L V10 |
5.0 |
1.0 |
0.0 |
| 11FR/L V13 |
5.0 |
1.3 |
0.0 |
| 11FR/L V15 |
5.0 |
1.5 |
0.0 |
| 11FR/L VB06 |
Y |
3.0 |
0.6 |
0.0 |
| 11FR/L VB07 |
4.0 |
0.7 |
0.0 |
| 11FR/L VB08 |
4.0 |
0.8 |
0.0 |
| 11FR/L VB09 |
4.0 |
0.9 |
0.0 |
| 11FR/L VB10 |
5.0 |
1.0 |
0.0 |
| 11FR/L VB13 |
5.0 |
1.3 |
0.0 |
| 11FR/L VB15 |
5.0 |
1.5 |
0.0 |
| Attention:The above are our standard production size and standard stock specifications, the size details can be processed separately according to customer requirements, and refer to the standard: NTK's CSVC series, etc. |
Entire Production Quick View:
1.Use 100% original carbide powder to sinter to get the integral insert blank.
2.Flat grinding machining.
3.Surrounding grinding machining.
4.Create insert cutting edge.
5.Chamfering and tip-arc processing of the insert cutting edge.
6.Composite Coating.
Quality Inspection:
Why choose us:
1.Technical innovation: Complex surfaces and functional structures can be quickly formed and kept accurate.
2.Processing speed: Short production cycle, fast delivery time, to ensure delivery on time according to the delivery date.
3.Product quality: High quality guaranteed.High precision, up to 0.005-0.001mm.
4.Confidentiality system: Triple confidentiality measures to protect, proofing more assured.
5.Fully equipped: Excellent processing capacity, multiple production lines, advanced equipment, professional supporting facilities.
6.Cost-effective: Reasonable design and material selection lead us to a competitive price, so that could help provide you more favorable price of the same level products .
